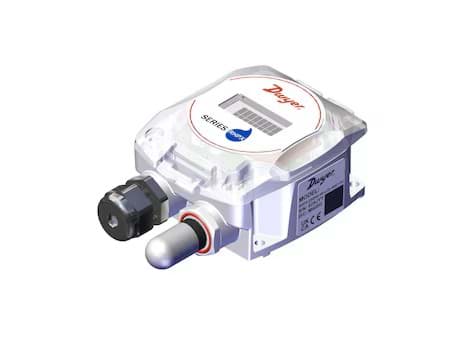

The Dwyer RHPX series offers a reliable solution for simultaneously measuring relative humidity and temperature in HVAC and building management systems. By combining two essential parameters in one compact transmitter, this device helps improve energy efficiency while optimizing occupant comfort.
Equipped with a capacitive polymer humidity sensor, the transmitters are available with ±2% or ±3% RH accuracy. Thanks to their high measurement precision, long-term stability, and dependable performance, the RHPX series is ideal for demanding applications such as:
- Building management systems (BMS)
- Commercial HVAC installations
- Cleanrooms and laboratories
- Data centers and server rooms
- Museums and archival environments
The RHPX transmitters are available in various configurations:

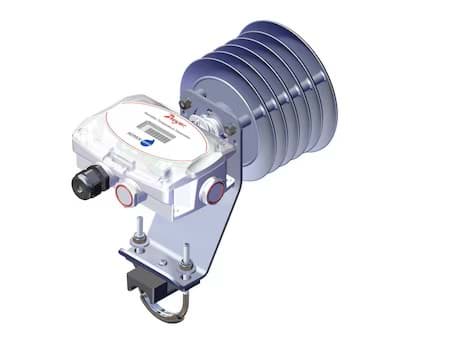

- Mounting styles: wall, duct, or remote sensor
- Output signals: 0–10 VDC or 4–20 mA
- Optional: two-line alphanumeric LCD display
- Available measurements: relative or absolute humidity, dew point, and enthalpy (depending on model)
By combining humidity and temperature measurement in a single device, the RHPX reduces installation time and cost. The wide range of enclosure types and signal options makes integration into existing systems straightforward.
