629C-11-CH-P4-E1-S3 ***BAS***

SKU 2025846

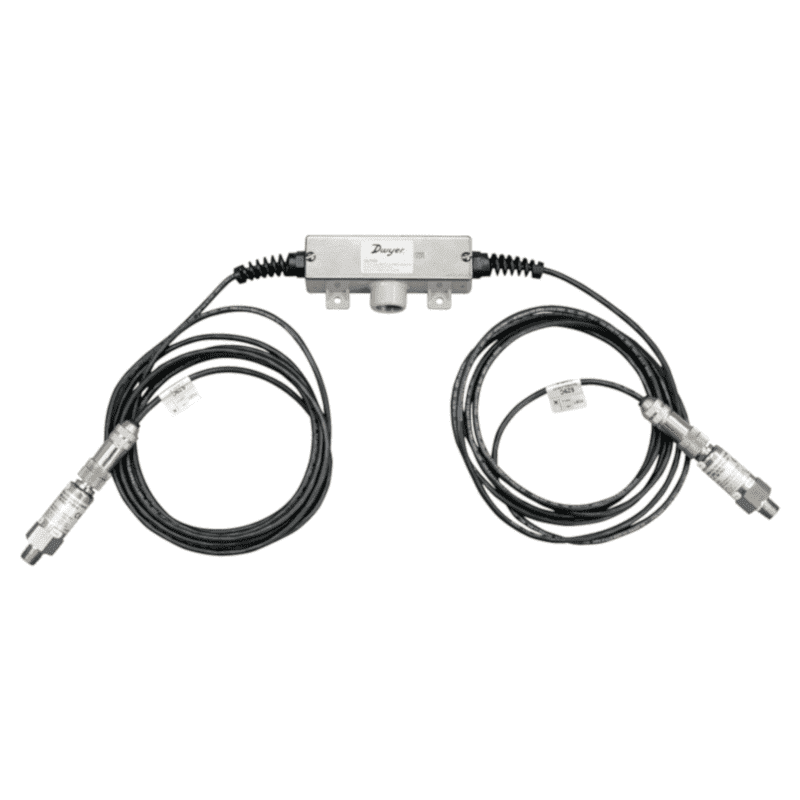

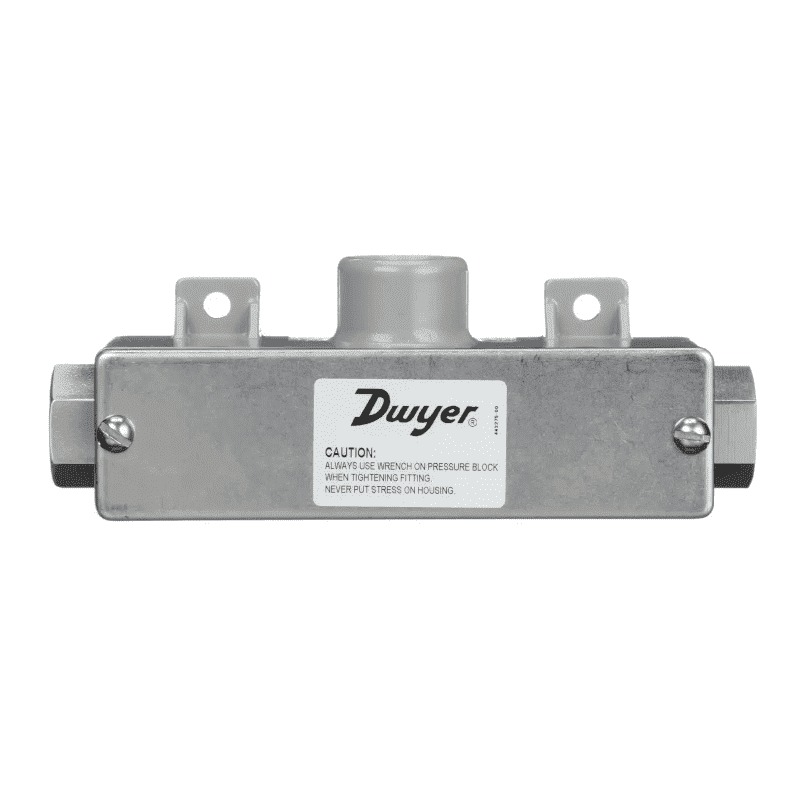

Dwyer differential pressure transmitter Model: 629C-11-CH-P4-E1-S3 Range: 0...0.5 bar Output: 0-5, 1-5, 0-10, 2-10 VDC Process connection: 1/4" BSPT F Electrical connection: cable gland with 3 ft prewire cable

629C-12-CH-P4-E1-S3 ***BAS***

SKU 2025847
Dwyer differential pressure transmitter Model: 629C-12-CH-P4-E1-S3 Range: 0...1 bar Output: 0-5, 1-5, 0-10, 2-10 VDC Process connection: 1/4" BSPT F Electrical connection: cable gland with 3 ft prewire cable

629C-13-CH-P4-E1-S3 ***BAS***

SKU 2025848
Dwyer differential pressure transmitter Model: 629C-13-CH-P4-E1-S3 Range: 0...2 bar Output: 0-5, 1-5, 0-10, 2-10 VDC Process connection: 1/4" BSPT F Electrical connection: cable gland with 3 ft prewire cable

629C-15-CH-P4-E1-S3 ***BAS***

SKU 2025850
Dwyer differential pressure transmitter Model: 629C-15-CH-P4-E1-S3 Range: 0...6 bar Output: 0-5, 1-5, 0-10, 2-10 VDC Process connection: 1/4" BSPT F Electrical connection: cable gland with 3 ft prewire cable

629C-16-CH-P4-E1-S3 ***BAS***

SKU 2025851
Dwyer differential pressure transmitter Model: 629C-16-CH-P4-E1-S3 Range: 0...10 bar Output: 0-5, 1-5, 0-10, 2-10 VDC Process connection: 1/4" BSPT F Electrical connection: cable gland with 3 ft prewire cable

629C-17-CH-P4-E1-S3 ***BAS***

SKU 2025852
Dwyer differential pressure transmitter Model: 629C-17-CH-P4-E1-S3 Range: 0...15 bar Output: 0-5, 1-5, 0-10, 2-10 VDC Process connection: 1/4" BSPT F Electrical connection: cable gland with 3 ft prewire cable

629C-18-CH-P4-E1-S3 ***BAS***

SKU 2025853
Dwyer differential pressure transmitter Model: 629C-18-CH-P4-E1-S3 Range: 0...20 bar Output: 0-5, 1-5, 0-10, 2-10 VDC Process connection: 1/4" BSPT F Electrical connection: cable gland with 3 ft prewire cable

629C-19-CH-P4-E1-S3 ***BAS***

SKU 2025854
Dwyer differential pressure transmitter Model: 629C-19-CH-P4-E1-S3 Range: 0...30 bar Output: 0-5, 1-5, 0-10, 2-10 VDC Process connection: 1/4" BSPT F Electrical connection: cable gland with 3 ft prewire cable
