Sauermann multifunction transmitter series Si-C320

Sauermann multifunction transmitter series Si-C320

SKU C320

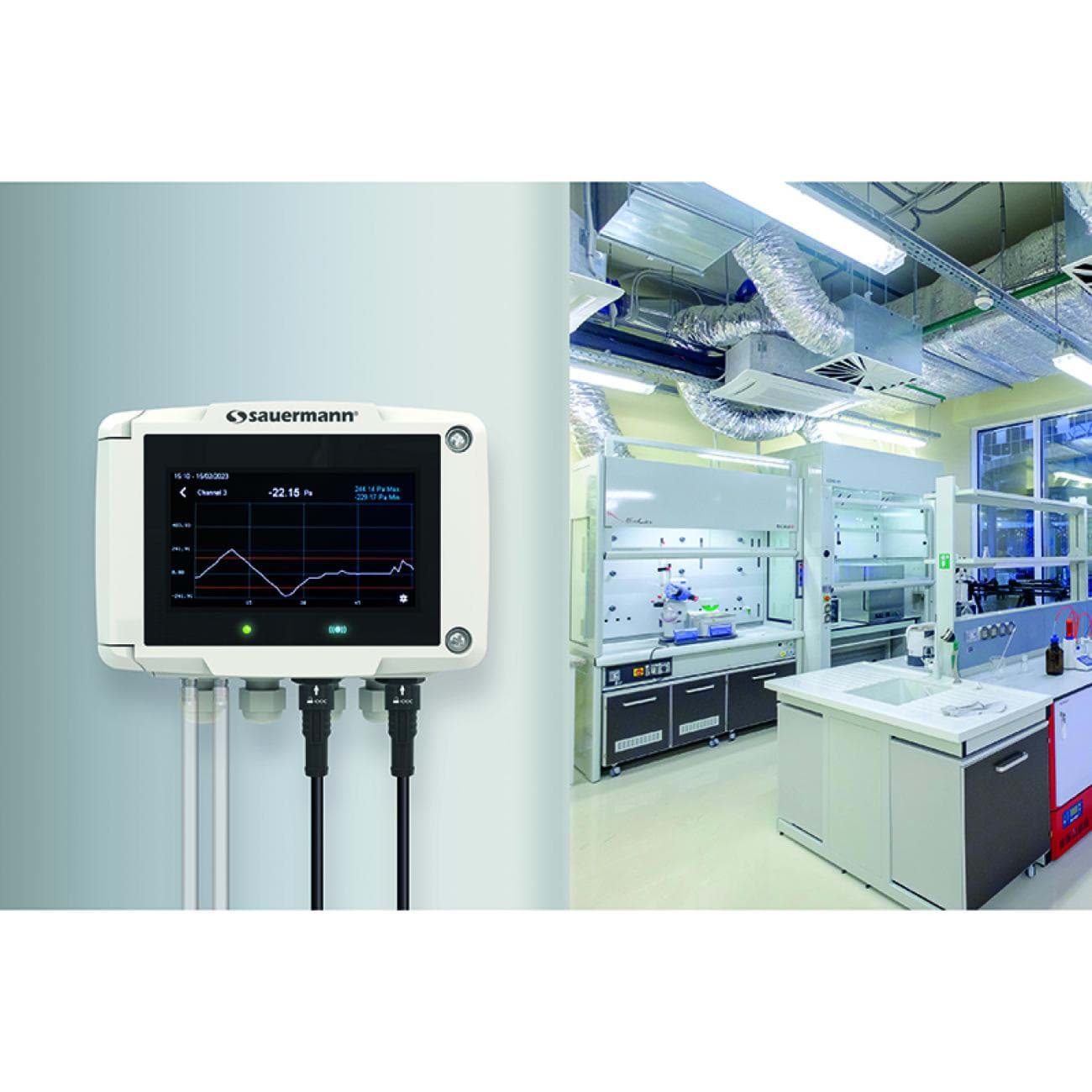

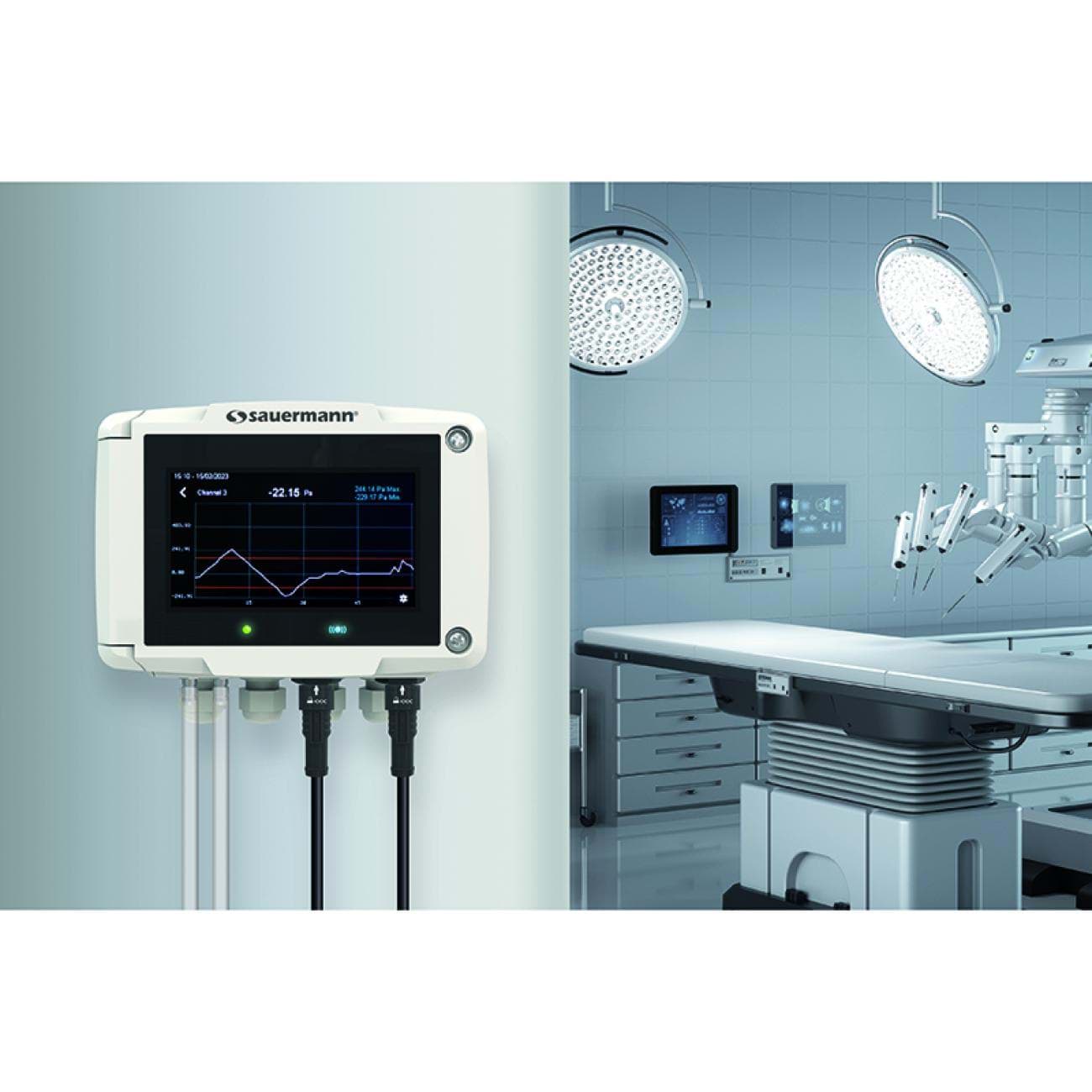

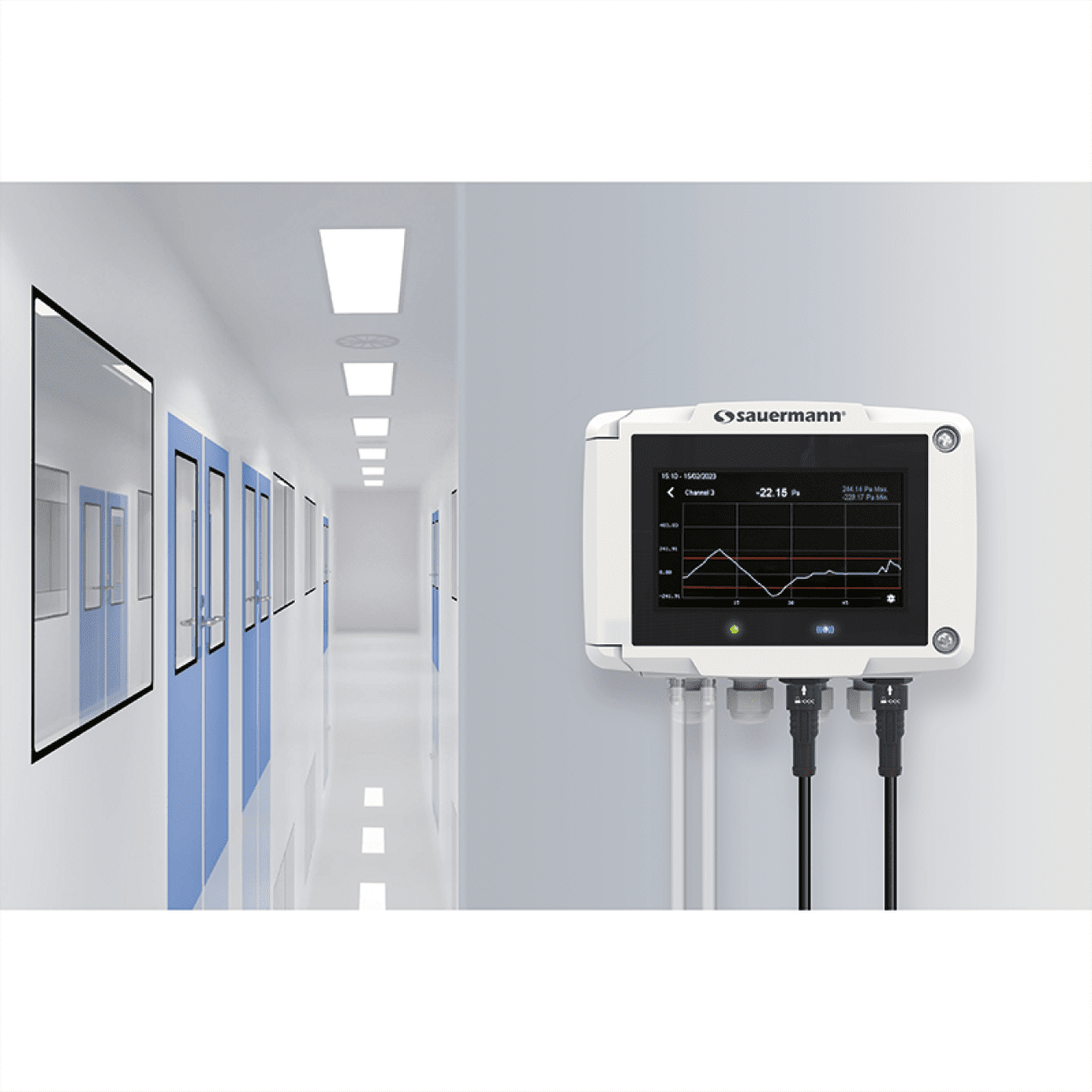

For cleanrooms, conditioned rooms and industrial ventilation applications where accurate measurement, control and monitoring of air parameters are critical, Sauermann's Si-C320 transmitters provide reliable measurements and help you meet the most stringent regulations.

Compare

Questions?

Email a friend

Si-C320-D

€ 919,00

Si-C320-D P/n 27940

SKU 8005790

Kimo/Sauermann multifunction transmitter with touchscreen display Model: Si-C320-D Power supply: 24 Vac/Vdc Output: 4x configurable outputs (4-20 mA/0-20 mA or 0-5/0-10V) and 1x RS485 digital interface (Modbus RTU protocol) 2 inputs for interchangeable probes 1 internal slot for interchangeable pressure module 1 internal slot for Bluetooth interface module 1 internal slot for relays module Housing: ABS, IP66 Supplied with adjusting certificate and wall-mounting bracket. P/n 27940

Si-C320-D-50

€ 1.239,00

Si-C320-D-50 P/n 27944

SKU 8005791

Kimo/Sauermann multifunction transmitter with touchscreen display Model: Si-C320-D-50 Power supply: 24 Vac/Vdc Output: 4x configurable outputs (4-20 mA/0-20 mA or 0-5/0-10V) and 1x RS485 digital interface (Modbus RTU protocol) 2 inputs for interchangeable probes With pressure module, range -50?0?+50 Pa 1 internal slot for wireless interface module 1 internal slot for relays module Housing: ABS, IP66 Supplied with adjusting certificate and wall-mounting bracket. P/n 27944

Si-C320-D-250

€ 1.216,00

Si-C320-D-250 P/n 27945

SKU 8005792

Kimo/Sauermann multifunction transmitter with touchscreen display Model: Si-C320-D-250 Power supply: 24 Vac/Vdc Output: 4x configurable outputs (4-20 mA/0-20 mA or 0-5/0-10V) and 1x RS485 digital interface (Modbus RTU protocol) 2 inputs for interchangeable probes With pressure module, range -250?0?+250 Pa 1 internal slot for wireless interface module 1 internal slot for relays module Housing: ABS, IP66 Supplied with adjusting certificate and wall-mounting bracket. P/n 27945

Si-C320-D-1000

€ 1.192,00

Si-C320-D-1000 P/n 27946

SKU 8005793

Kimo/Sauermann multifunction transmitter with touchscreen display Model: Si-C320-D-1000 Power supply: 24 Vac/Vdc Output: 4x configurable outputs (4-20 mA/0-20 mA or 0-5/0-10V) and 1x RS485 digital interface (Modbus RTU protocol) 2 inputs for interchangeable probes With pressure module, range -1000?0?+1000 Pa 1 internal slot for wireless interface module 1 internal slot for relays module Housing: ABS, IP66 Supplied with adjusting certificate and wall-mounting bracket. P/n 27946

Description

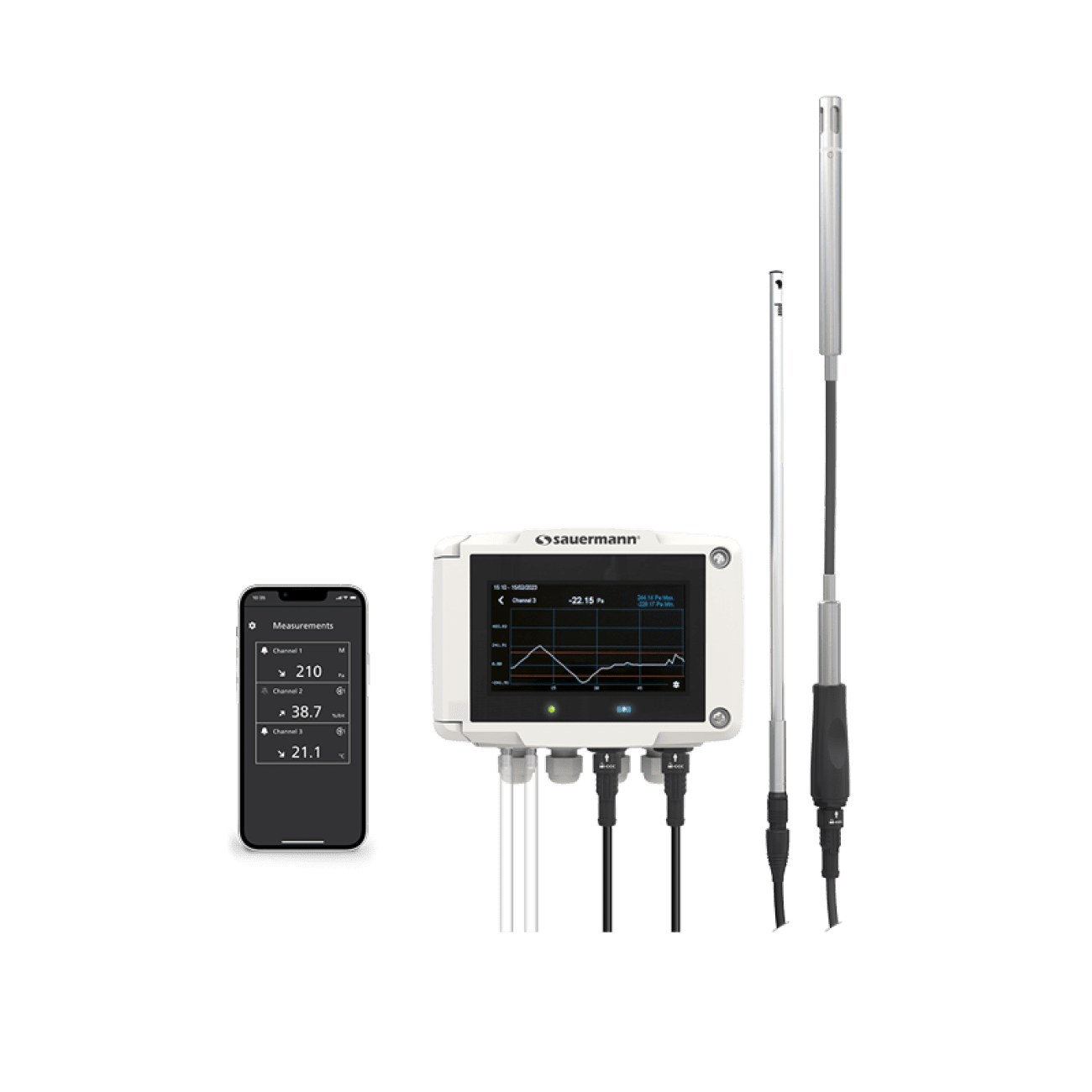

The Si-C320's housing is waterproof, rugged and resistant to cleaning with hydrogen peroxide. In addition, it features a color touchscreen for comprehensive display and advanced control of measurement parameters. The multifunction transmitters can be equipped with sensors for differential pressure, temperature, humidity, air velocity, carbon monoxide, carbon dioxide and VOC.

In addition, measurements can be easily recorded and downloaded via the Sauermann Control software.

Multifunctional for ventilation and IAQ applications
2 x inputs for external probes
4 x analog outputs
1 x RS485 interface for the ModBus RTU protocol
Diagnostic outputs
Ability to edit channel names

The Sauermann Si-C320 is the successor to the Kimo C310.

Features

Measuring principle

Piëzo met auto-zero
