TRA-DIGI-1M € 390,00 TRA-DIGI-1M SKU 8004265 Transducer with external temperature / relative humidity sensor for in- & outdoor purposes, without display Model: TRA-DIGI-1M With sensor protection cover Temperature range: -20°C to 80°C Accuracy temperature: ± 0,4°C Range RH: 0 to 100% R.V. Accuracy RH: ± 1.8% RH (in the range 5-90% RH at 23°C) Output: 4-20mA Probe length: 75mm Cable length: 1 meter Power: 9-30 Vdc Protection class: IP65 Comes with 1-point factory calibration certificate TRA-DIGI-2M € 390,00 TRA-DIGI-2M SKU 8004267 Transducer for combined digital temperature- and RH probes Output 2x 4-20mA Power 9-30Vdc Including relative humidity and temperature probe with filter Sensor with 4p Hirschman connector. Cable lenght 2 meter. Range -30 to +105 °C, 0-100%RV Including 1-punts kalibratiecertificaat. TRA-DIGI-5M € 405,00 TRA-DIGI-5M SKU 8004268 Transducer with external temperature / relative humidity sensor for in- & outdoor purposes, without display Model: TRA-DIGI-5M With sensor protection cover Temperature range: -20°C to 80°C Accuracy temperature: ± 0,4°C Range RH: 0 to 100% R.V. Accuracy RH: ± 1.8% RH (in the range 5-90% RH at 23°C) Output: 4-20mA Probe length: 75mm Cable length: 5 meter Power: 9-30 Vdc Protection class: IP65 Comes with 1-point factory calibration certificate DescriptionFeatures Description Meetwaarde omvormer geschikt voor gecombineerde digitale temperatuur- en R.V. sensoren. De opnemer heeft twee uitgangen (4-20mA) beschikbaar. Sensoren apart bij te bestellen. Features Soort instrument Omvormer Voeding 24 Vdc Voedingstype 9-30 Vdc Nauwkeurigheid RV: ± 3% RV van 5 tot 95% bij 23°C Temp: ±0,4°C Beschermingsgraad IP64 (electronica) Bereik relatieve vochtigheid 0 tot 100% RV Bereik temperatuur -30°C tot +80°C Afmetingen 89mm x 73mm x 40mm Uitgangssignaal 4-20 mA Product tags TRA 6 Related products TRHD-102M Digitale (uitwisselbare) temperatuur/RV sensor (excl connector) Temperatuurbereik -30 tot +80 °C Nauwkeurigheid ±0,4°C RV bereik 0 tot 100%RV Nauwkeurigheid ±1.8% Press ENTER for more options to TRHD-102M Digitale (uitwisselbare) temperatuur/RV sensor (excl connector)

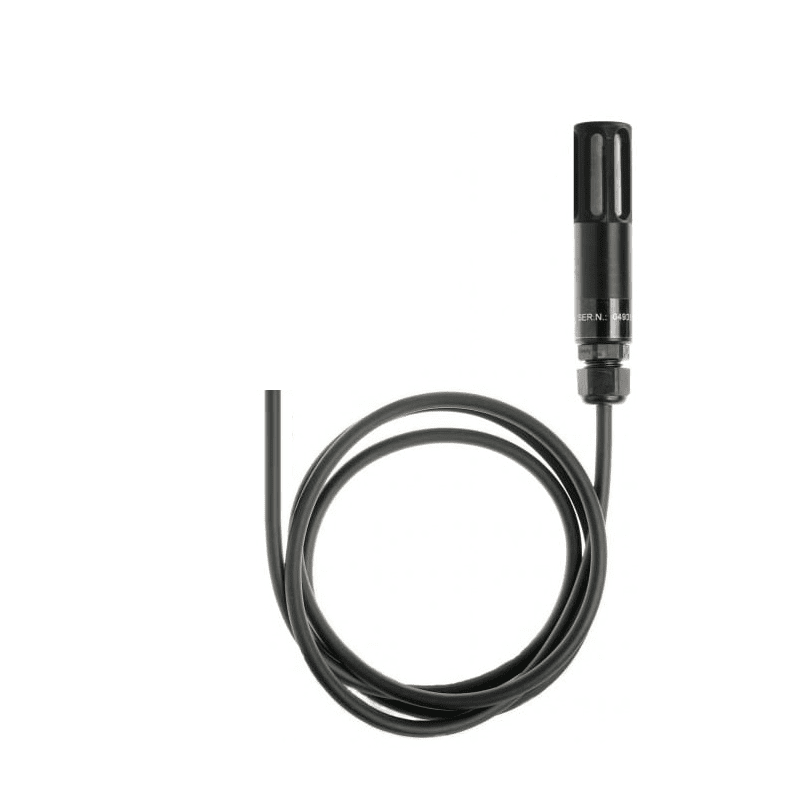

TRA-DIGI-1M SKU 8004265 Transducer with external temperature / relative humidity sensor for in- & outdoor purposes, without display Model: TRA-DIGI-1M With sensor protection cover Temperature range: -20°C to 80°C Accuracy temperature: ± 0,4°C Range RH: 0 to 100% R.V. Accuracy RH: ± 1.8% RH (in the range 5-90% RH at 23°C) Output: 4-20mA Probe length: 75mm Cable length: 1 meter Power: 9-30 Vdc Protection class: IP65 Comes with 1-point factory calibration certificate
TRA-DIGI-2M SKU 8004267 Transducer for combined digital temperature- and RH probes Output 2x 4-20mA Power 9-30Vdc Including relative humidity and temperature probe with filter Sensor with 4p Hirschman connector. Cable lenght 2 meter. Range -30 to +105 °C, 0-100%RV Including 1-punts kalibratiecertificaat.
TRA-DIGI-5M SKU 8004268 Transducer with external temperature / relative humidity sensor for in- & outdoor purposes, without display Model: TRA-DIGI-5M With sensor protection cover Temperature range: -20°C to 80°C Accuracy temperature: ± 0,4°C Range RH: 0 to 100% R.V. Accuracy RH: ± 1.8% RH (in the range 5-90% RH at 23°C) Output: 4-20mA Probe length: 75mm Cable length: 5 meter Power: 9-30 Vdc Protection class: IP65 Comes with 1-point factory calibration certificate
